  • OPT-1900  Wired 2D Barcode Scanner
OPT-1900  Wired 2D Barcode Scanner

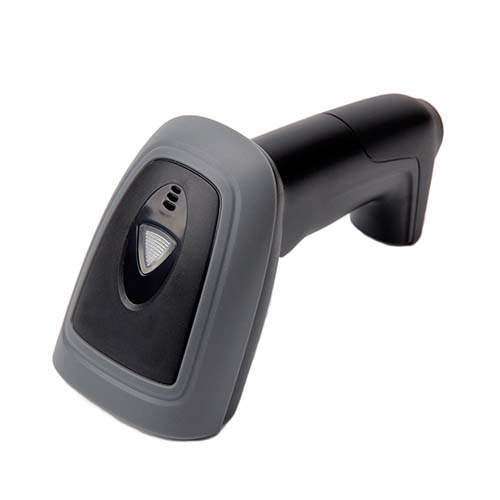

OPT-1900 Wired 2D Barcode Scanner

  • Product description: A 2D barcode scanner can interpret two-dimensional barcodes, which store data in two dimensions, rather than in just a series of black and white bars. 2D barcodes look like checkerboards or a series o
  • INQUIRY

Product Name: Wired 2D Barcode Scanner

Model NO. : OPT-1900

Physical Parameters

Material

ABS+PC+TPU

size

L*W*H :170mm*97mm*68mm

Power supply

DC 5V

Performance Parameters

Support interface

USB, USB virtual RS232

Sensor

Planar CMOS sensor

Light source

Red CCD ,white LED (lighting)

Processor

32-bit ARM MCU

Decoding Capability

1D: Codabar, Code39, Code32, InterLeaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISSN, GS1 DATABAR(RSS14), GS1 DATABAR Limited, Gs1databar Expanded

2D: PDF417, QR CODE, MICRO QR, DATAMATRIX, AZTEC CODE

Resolution

Code39 3mil, QR 8.7mil, PDF417 5milPCS45%

Depth of field

5MIL   CODE39:       3--11   CM

13MIL  UPC-A :       4--27   CM

20MIL  CODE39 :      7.5--35 CM

6.7MIL PDF417 :      3.5--9  CM

10MIL  DATAMATRIX:   3--10   CM

15MIL  DATAMATRIX:   3--17   CM

20MIL  QR :         3--21   CM

Scanning Speed

300scans/sec

Scanning Method

Manual ,auto-sensing

Scanning area

5 * 5 cm² -- 30 * 30 cm²

Prompting Mode

Buzzer ,indicator light (LED)

Printing contrast

No lower than 35%

Scanning angle

Roll0-360°pitch±65°yaw±60°

Environment Parameters

IP Grade

IP 54

Operating temperature

0 to 50 ºC / 32 to 122 ºF

Storage temperature

0 to 50 ºC / 32 to 122 ºF

Operating humidity

5 - 95% (non-condensing)

ESD Protection

15KV air discharge

Shock resistance

1.5 free fall on concrete surface
