Thermal Printer

  • Portable Mini Thermal Printer 1D/2D Supported
  • Portable Mini Thermal Printer 1D/2D Supported
  • Portable Mini Thermal Printer 1D/2D Supported
  • Portable Mini Thermal Printer 1D/2D Supported
  • Portable Mini Thermal Printer 1D/2D Supported
Portable Mini Thermal Printer 1D/2D SupportedPortable Mini Thermal Printer 1D/2D SupportedPortable Mini Thermal Printer 1D/2D SupportedPortable Mini Thermal Printer 1D/2D SupportedPortable Mini Thermal Printer 1D/2D Supported

Portable Mini Thermal Printer 1D/2D Supported

  • Product description: Support 1.D,2.D bar code printing
  • INQUIRY

Product performance:

●Support 1.D,2.D bar code printing

●While compatible with Windows, Linux, Android and IOS systems

●Super battery life, with smart power saving and power consumption control functions , to ensure longer print time

●Support USB, COM and Bluetooth communications

●Support sound and light reminder when lack of paper, printing abnormal

●Anti fall of 1.5M cement floor

Application:

Warehousing, transportation,  logistics,  supermarket,  tobacco,  hydropower  reading,  mobile  government affairs,mobile police, postal and other industries

Printer Parameters:

Item

Parameter

Print parameter

Printing

Method

Thermal Line

Effective

Printing Width

48mm

Resolution

384 dots/line(8dots/mm,203dpi)

Priting

Speed

70mm/S

Interface

USB, Serial, Bluetooth

Line

spacing

3.75mm(Can adjust line spacing by command)

Line No.

Font A:32 character /Line

Font B:42 character/Line

Simple,traditional Chinese-16 lines

Character

The standard GB18030 simplified / traditional Chinese characters library

Character

Size

ANK character Font A 1.5 × 3.0mm 12 × 24

Font B1.1×2.1mm9×17 Simplified/Traditional3.0

×3.0mm(24×24 点)


Charge

Indicator

Support

Lack of

paper

Support

Beep

Lack of paper,printing abnormal alarm

Paper

Type

Thermal

Width

57.5±0.5mm

thickness

≤0.12mm

Diameter

≤40mm

Feed

Easy(Clameshell feed)

Print

commands

Commands

ESC/POS

Power

Type

Rechargeable Lithium polymer battery

Capacity

2000mAh/7.4V

Charger

9.0V/2A

Buffer

Input

4KB

NV Flash

40KB

Physical features

Weight

200G

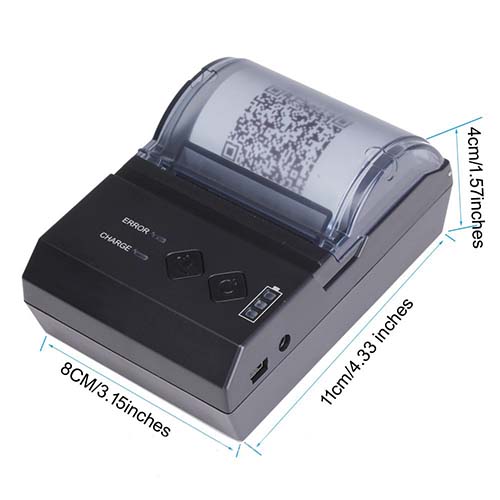

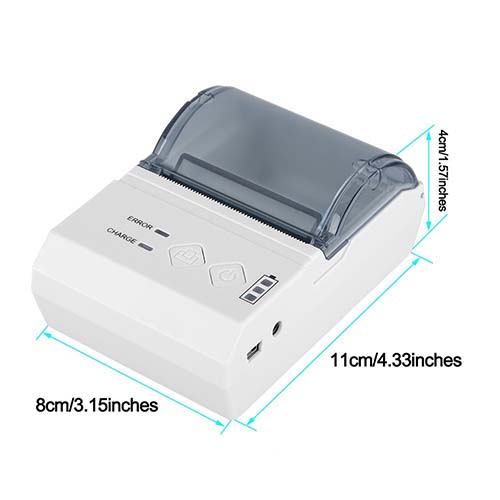

Dimension

114*80*50(MM)

Environment

Operating

Temp:5 ~ 45℃, Humidity:10 ~ 80%

Storage

Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No Dew)

Reliability

Print head

life

50KM(Printing Density≤12.5)

Software

Driver

Android,IOS,Linux,WinXP,Win7,Win8,Win8.1,Win10
