Thermal Printer

  • 80mm Thermal Receipt Printer with multi-interface optional
  • 80mm Thermal Receipt Printer with multi-interface optional
  • 80mm Thermal Receipt Printer with multi-interface optional
  • 80mm Thermal Receipt Printer with multi-interface optional
  • 80mm Thermal Receipt Printer with multi-interface optional
80mm Thermal Receipt Printer with multi-interface optional80mm Thermal Receipt Printer with multi-interface optional80mm Thermal Receipt Printer with multi-interface optional80mm Thermal Receipt Printer with multi-interface optional80mm Thermal Receipt Printer with multi-interface optional

80mm Thermal Receipt Printer with multi-interface optional

  • Product description: Excellent waterproof, anti - oil, anti-dust structure design
  • INQUIRY

Product performance:

●300 mm / second ultra high-speed printing, improve the printing efficiency;

●Excellent waterproof, anti - oil, anti-dust structure design;

●Support wall hanging function, meet the special environment printing;

●Movable baffle design, support 80MM, 58MM different width of the paper roll printing;

●Support 80MM large diameter roll;

●Support kitchen printing and Internet printing;

●Support printer monitoring function,to avoid losing bills;

●Using 100M Ethernet card, connect printer faster, to avoid losing bills;

●Recover printing after netwok disconnection,to avoid losing bills;

●2048K super input buffer,to avoid losing bills;

●Support LOGO Graphical download and print;

●Support 1D,2D bar code printing;

●Support order come remind and error alarm;

●Support black mark orientation and re-print;

●GB18030 Large font;

●Support Multi language printing;


●Richinterface:Internet+USB+COM;Internet+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth;

●Built-in WEB server,configure printer by IE browser;

●Compatible with ESC/POS print instruction mode;

●Support Windows,Linux,Android and IOS system printing;

Application:

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

Printer Parameters:

Item

Parameters

Print parameters

Printing

Method

Thermal Line

Printing width

72mm

Resolution

576 Dots/Line or 512 Dots/Line8dots/mm203dpi

Print speed

300mm/Second

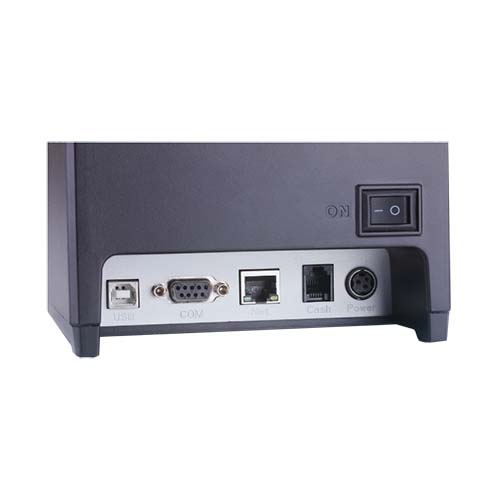

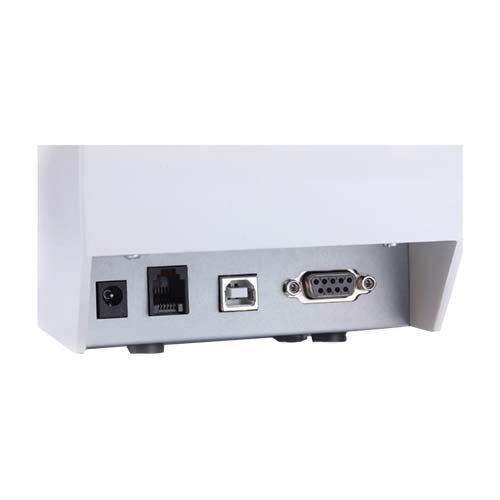

Interface

Internet100M+USB+COMInternet100M+USB+WIFI

USB+GPRSUSB+COMUSB+Bluetooth

Line Spacing

3.75mmCan adjust line spacing by command

Line No.

FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24

lines

Character

standard GB18030 simplified / traditional Chinese Fonts

Character Size

ANK characterFont A1.5×3.0mm12×24 dots

Font B 1.1×2.1mm 9×17 dots Simplified/Traditional Chinese3.0×3.0mm(24×24 dots

Bar code Character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/G reek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC85 8/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVie tnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC

1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D bar code

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CO DABAR/CODE93/CODE128

2D barcodeQRCODE

Graphics

printing

Graphics

printing

Supports bitmap download and print

Cutter

Cutter

Function

Full cut/Half cut

Paper

Type

Thermal

Width

79.5±0.5mm

Diameter

≤80mm

Feed method

Easy feed(Clameshell feed)

Print

commands

Commands

ESC/POS


Power

Power Adaptor

InputAC 100V-240V,50-60Hz

OutputDC 24V/2.5A

Cash Drawer

output

DC 24V/1A

Buffer

Input Buffer

2048K bytes

NV Flash

256K bytes

physical

characterist ics

Weight

1.15KG

Dimension

186*145*135

environme nt

Working

Temp5 ~ 45℃, Humidity10 ~ 80%

Storage

Temp-10 ~ 50 Humidity10 ~ 90%No dew

Reliability parameter

Print Head

Life

100KMprint density≤12.5

Cutter Life

1000,000times

Software

Driver

Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10
