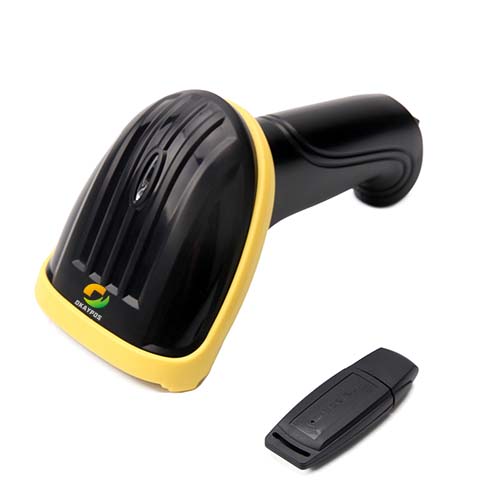

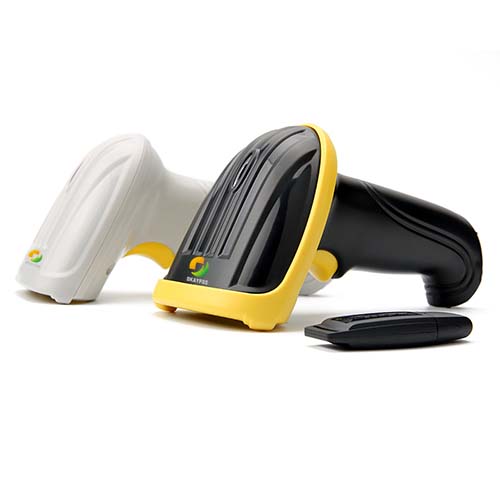

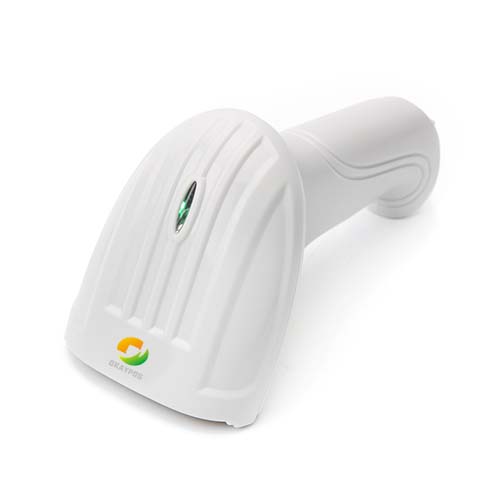

OP-620 Wireless Laser Barcode Scanner

Physical Parameters

Material

ABS+PC+PVC

Size

L*W*H：93mm*88mm*160mm

Power supply

DC 5V ±5%

Power

180mw（operating）；25mw（standby）；360mw（MAX）

Battery

3.7V  750mAH  Lithium polymer battery

Charging time

2 hours

Weight

136g（without cable）

Performance Parameters

Interface

USB wired/wireless

Transmission Distance

2.4G 30M / Bluetooth 10M

Light Source

Laser LED 650± 20nm （National laser safety standard class 1）

Storage

64K（About 3500 14b id barcodes）（the memory capacity can be customized）

Decoding capability

UPC-A，UPC-E，EAN-13，EAN-8，ISBN/ISSN code 39，Codabar，Interleave 25，Industrial 25，Matrix 25，Code 128，Code 93，Code 11，MSI/PIESSEY，UK/PLESSEY，UCC/EAN128,etc.

Resolution

Minimum 0.1mm（4mils）

Depth of field

3—9cm（0.1mm bar width）；3.5—45cm（0.3mm bar width）

Decoding speed

200scans/sec

Error rate

1/5 million

Trigger mode

Manual trigger；auto continuous scanning；Infrared auto scanning，stand auto scanning（optional）

Sensing distance

25cm (250cm2)  20cm(100cm2)   5cm(small area)

Sensing delay

2sec/time

Sensing speed

100times/sec

Reading width

60mm at30mm(from objects)；98mm at100mm(from objects)

Reading distance

10-600mm  reading pitch60º reading dip angle 45º

Scanning width

5cm―30cm

Prompt mode

Buzzer, indicator light

Contrast

30%

Scan angles

Roll30°、Pitch75°、Yaw65°

Cylinder Horizontal

Diameter 35mm

Envionment Parameters

IP Grade

IP 54

Operating Temp.

0 to 50 ºC / 32 to 122 ºF

Storage Temp.

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

20 - 85% (non-condensing)

Storage Humidity

20 - 85% (non-condensing)

ESD protection

15KV air discharge

Shock resistance

1.2m free fall on concrete surface
