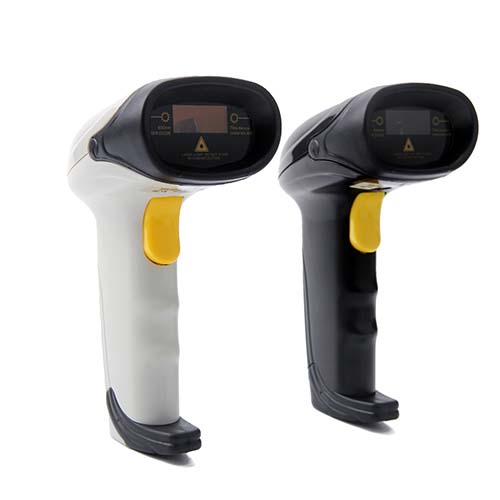

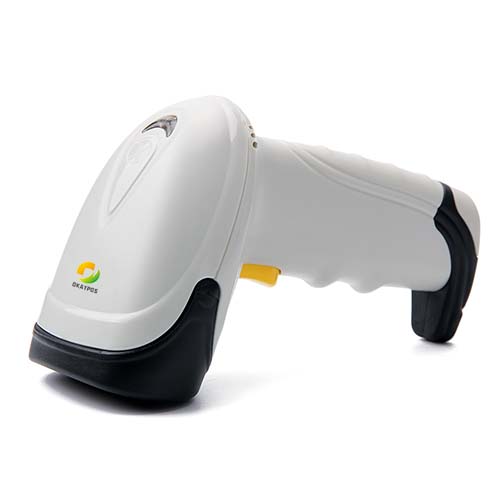

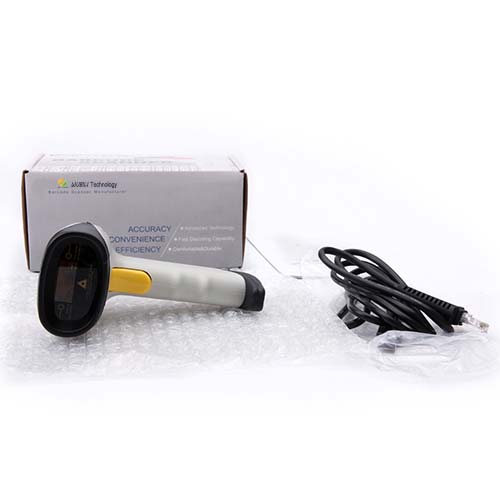

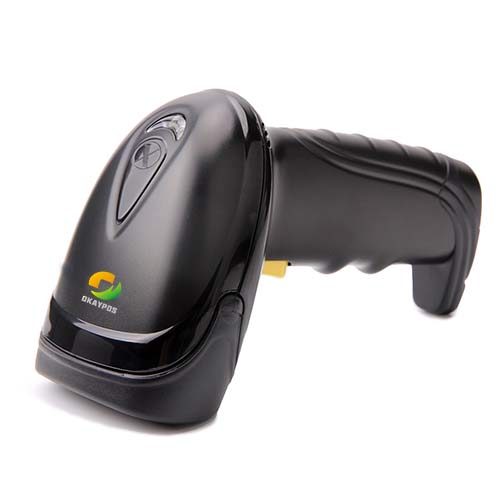

OP-500 Laser Barcode Scanner

Technical Parameters

Light source

Visible laser 650nm

Error rate

1/5,000,000

Safety

According to national laser safety standard Class2

Barcode type

1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc.

Supported interface

Built-in PS/2 keyboard, RS-232 serial, standard 2.0USB interface

Trigger mode

Manual; automatic successive scanning

Detection distance

25cm (250cm2) 20cm (100cm2) 5cm(small area)

Scanning delay

2secs/time

Scanning speed

150times/sec

Baud rate

RS232baudrate: 2400-38400

Bar width

Minimum 0.1mm(4mils)

Scanning width

60mm at 30mm (from objects);98mm at 100mm (from objects)

Depth of scanning field

2-9cm(0.1mm bar width);3-50cm(0.3mm bar width)

Scanning speed

150times/sec

Scanning distance

10-600mm Elevation angle 60°, Inclination angle 45°

Operating temperature

-20ºC-50ºC

Storage temperature

-20℃-60℃

Operating humidity

0-95%

Storage humidity

5%-95%

Input voltage

DC 5V±5%

Operating current

50ma(operating mode);30ma(standby mode);100ma(maximum peak)

Quiescent current

­20mA

Shock resistance

Pass 1.5 free fall test

Electromagnetic interference

According to en8001,par1 standard

Dustproof waterproof

According to iec529,ip42 standard

Scanner size

LxWxH: 145mm × 65mm × 105mm

Shell material

ABS+PVC+PC

Language

Support many different languages
