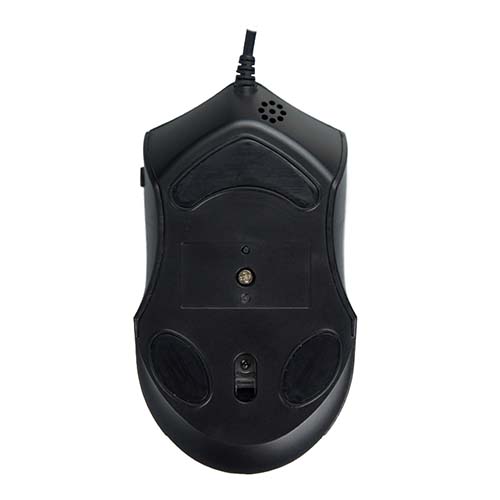

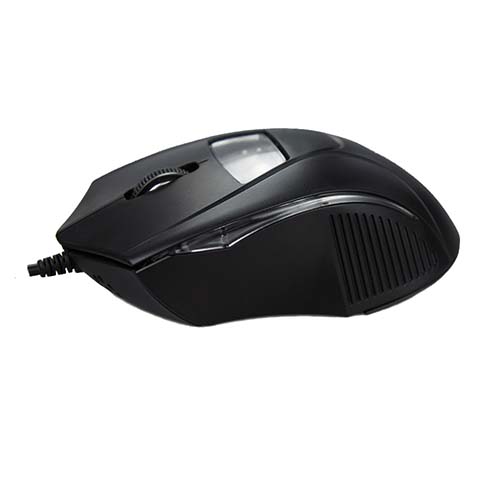

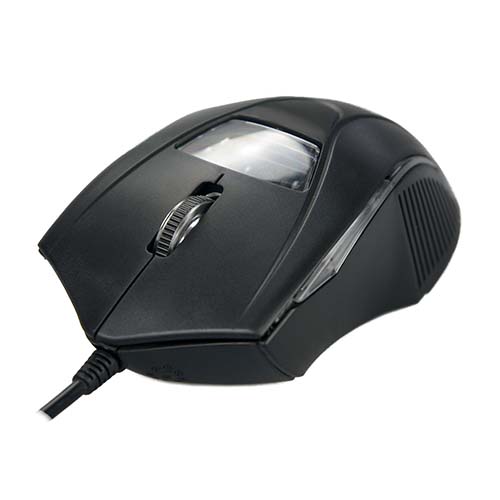

OP-8000 Wired 2D Mouse Barcode Scanner

Physical Parameters

Surface

ABS+TPE+PC

Size

40*70*132mm

Color

White/ black

Interface

USB

Power supply

DC 5V ±5%

Weight

125g(include the wire)

Performance Parameters

Sensor

Linear CMOS sensor

Light source

632nm (red LED)

Processor

32-bit  ARM Cortex-M3 MCU

Decoding ability

Codabar, Code 11, Code 93, MSI, Code128, UCC/EAN-128, Code 39, EAN-8,EAN-13, UPC-A, Industrial 25, Standard 25, 2/5 Matrix

QR code , DaraMatrix, PDF417

Resolution

4mil (0.1mm), PCS45%

Depth of field

500mm@20mil/0.5mm, PCS90%

Scanning speed

300 scans/sec

Trigger mode

Manual, auto flash, auto-induction

Scanning width

5cm-30cm

Prompting mode

Buzzer, indicate light(LED)

Printing contrast

30%

Scanning angle

roll30°, pitch65°, yaw65°

Mouse Parameters

Capture trails system

optical

Max Acceleration

10inch/sec

Resolution

500CPI

Using environment

Operating temperature

0 to 50 ºC / 32 to 122 ºF

Storage Temperature

-20 to 70 ºC / -4 to 158 ºF

Operating Humidity

20 - 95% (non-condensing)

Storage Humidity

20 - 95% (non-condensing)

IP Grade

IP54

ESD protection

15kv

Shock Resistance

1.5m free fall on concrete surface
