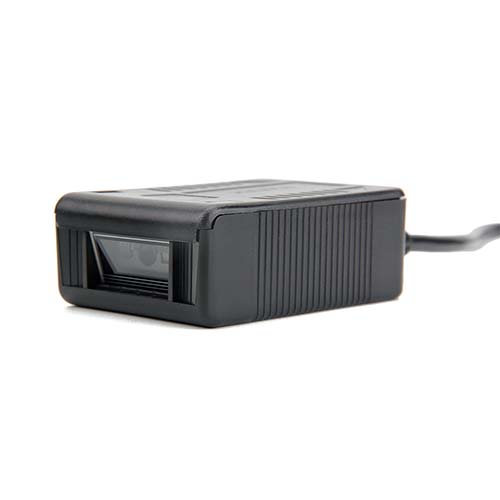

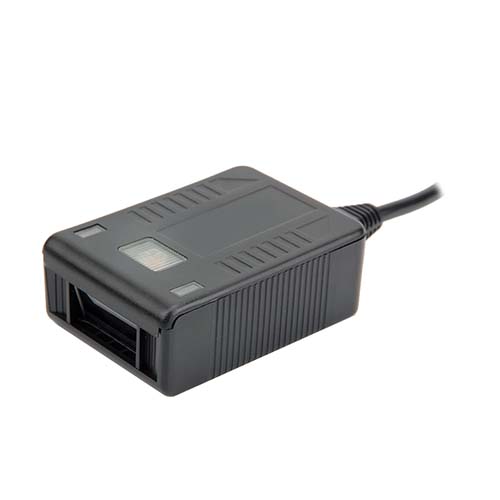

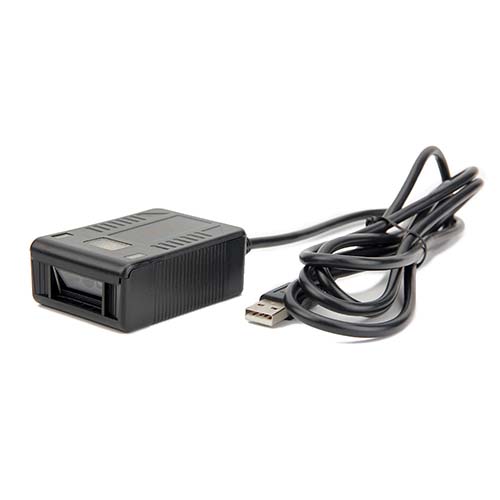

OP-7200 QR Code Barcode Scanner

PHYSICAL CHARACTERISTICS

Material

ABS+PVC+PC

Power Supply

DC 5V/300mA

PERFORMANCE CHARACTIESTICS

Interface Supported

USB, RS-232

Sensor

Flat CMOS Sensor

Light Source

Red LED sights + white LED light

Processor

32-bit MCU

Decode Capability

Codabar, Code11, Code39/Code93, UPC/EAN, Code128/EAN128, InterLeaved2of5, Matrix2of5, MSI CODE, Standard2of5, QR CODE

Resolution

Code39 5mil, QR 8.7mil, PCS45%

Depth of Field

5MIL   CODE39:       5--12   CM

15MIL  CODE39 :      4--25   CM

10MIL  CODE93 :      4--21   CM

15MIL  UPC/EAN:      4--25   CM

20MIL  QR :         4--25   CM

Decoding Speed

200 scans/sec

Trigger mode

Trigger buttons, Automatic successive scanning

Scanning Area

5*5 cm² - 30*30 cm²

Prompting Mode

Buzzer, Indicator light(LED)

Print Contrast

35%

Scan Angles

Roll 0-360°, Pitch±65°, Yaw±60°

USER ENVIRONMENT

IP level

 IP 54

Operating Temp.

0 to 50 ºC / 32 to 122 ºF

Storage Temp.

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

5 - 95% (non-condensing)

Electrostatic protection

15KV

Shock Resistance

1.5m free fall on concrete surface
