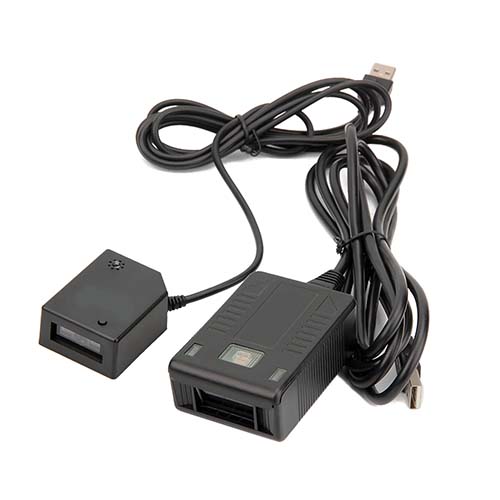

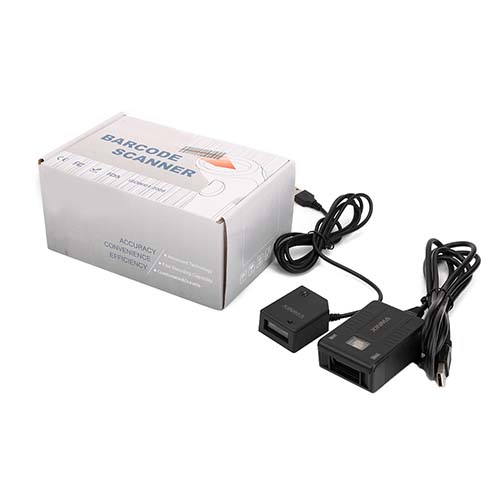

Product Name: QX-9700M Mini 1D Image CCD Barcode Scanner

General Description

QX-9700M is developed based on our model QX-9700 (wired 1D image CCD Barcode Scanner). It has a 32bit CPU and runs a 500scans/sec high speed. The imager inside can capture and decode 1D bar code both on paper and electronic screen quickly. It is in a small size which is very convenient to carry. With QX-9700M in hand, you will have a totally different experience of scanning bar codes.


Features

1. Read both on paper and electronic screens (smart phone screen, computer screen, etc.);

2. Good penetrability (even if the bar code is covered by glass or is fuzzy, it can still read out);
3. 32bit CPU and 500scans/sec high speed;

4. Easy to program, light weight and small size;

5. Long-range CCD bar code scanner;

6. Different interface for your choice.


PHYSICAL CHARACTERISTICS

Product style

Mini Size Portable Barcode Reader

Material

ABS+TPE+PC

Dimension

L*W*H:47mm*31mm*19mm

Color

Black

Power Supply

DC 5V±5%

Weight

45g (with cable)

PERFORMANCE CHARACTIESTICS

Interface

USB, RS232

Sensor

Linear CCD sensor

Light Source

632nm Red light diode(LED)

Processor

32-bit  ARM Cortex-M3 MCU

Decode Capability

Codabar, Code 11,Code 93,MSI,Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,Industrial 25,Standard 25,2/5 Matrix, etc.

Resolution

4mil(0.1mm),PCS45%

Depth of Field

500mm@20mil/0.5mm,PCS90%

Scanning Speed

500 times/sec

Scanning Mode

Trigger buttons; Automatic scintillation scanning; Automatic induction scanning

Scan Width

5cm~30cm

Prompting Mode

Buzzer, Indicator light(LED)

Print Contrast

30%

Scan Angles

Roll35°,Pitch65°,Yaw65°

USER ENVIRONMENT

Operating Temp.

0 to 50 ºC / 32 to 122 ºF

Storage Temp.

-20 to 70 ºC / -4 to 158 ºF

Operating Humidity

20 - 95%  ( non-condensing )

Storage Humidity

20 - 95% ( non-condensing )

IP level

≥IP54

Electrostatic Protection

15kv

Shock Resistance

1.8m free fall on concrete surface
