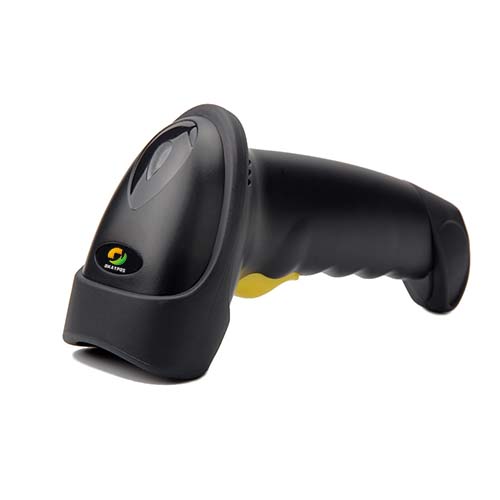

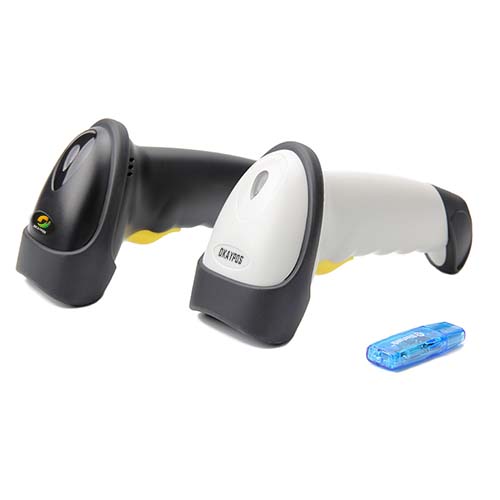

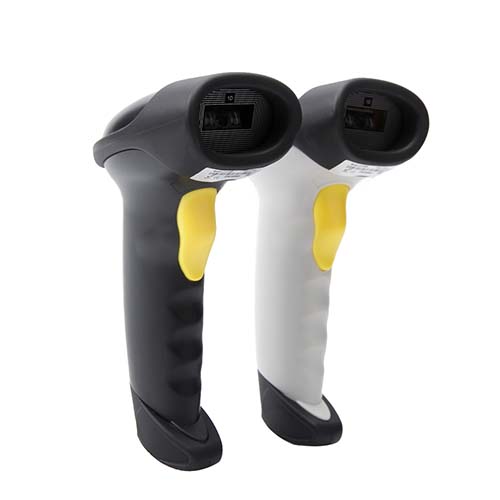

QX-9700B ​Bluetooth 1D Image CCD Barcode Scanner

PHYSICAL CHARACTERISTICS

Product name

Bluetooth 1D Image CCD Barcode Scanner

Material

ABS+TPE+PC

Size

L*W*H:166mm*88mm*64mm

Color

White/Black

Power Supply

DC 5V±5%

Charging cable

1.5m universal USB cable

Battery

3.7V  1500mAH  18650 lithium battery

Operating current

245mA(operating mode);317mA(maximum peak)

Charging time

3.5 hours

Weight

170g±5g(without cables)

PERFORMANCE CHARACTIESTICS

Transmission Distance

10 meters open linear distance

Transmission Frequency

2.4GHZ Bluetooth

RAM Capacity

64K(About 3500 14b 1d barcodes)(the memory capacity can be customized)

Sensor

Linear CCD sensor

Light source

632nm red diode（LED）

Processor

32-bit  ARM Cortex-M3 MCU

Decoding Capability

Codabar, Code 11,Code 93,MSI,Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,Industrial 25,Standard 25,2/5 Matrix etc.

Resolution

4mil(0.1mm),PCS45%

Depth of field

500mm@20mil/0.5mm,PCS90%

Scanning speed

500 times/sec

Trigger mode

Manual, Automatic induction, Continuous scanning

Scanning width

5cm~30cm

prompting mode

Buzzer, Indicator light(LED)

Print Contrast

30%

Scan Angles

Roll35°,Pitch65°,Yaw65°

USER ENVIRONMENT

Operating Temp.

0 to 50°C / 32 to 122°F

Storage Temp.

-20 to 70°C / -4 to 158°F

Operating Humidity

20~95% ( non-condensing )

Storage Humidity

20~95% ( non-condensing )

IP Grade

≥IP54

ESD protection

15kv

Shock Resistance

1.5m free fall on concrete surface
