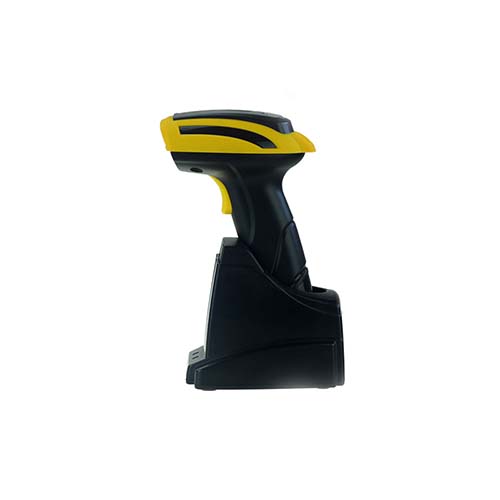

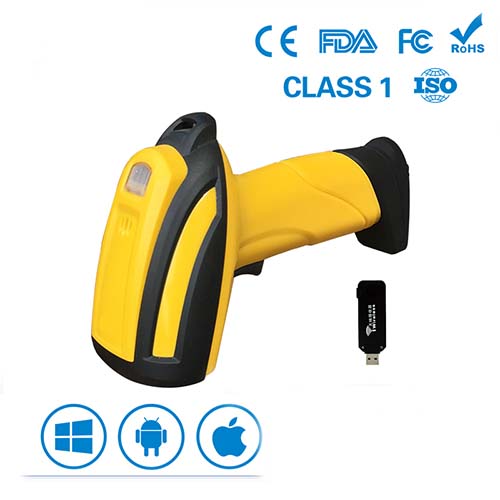

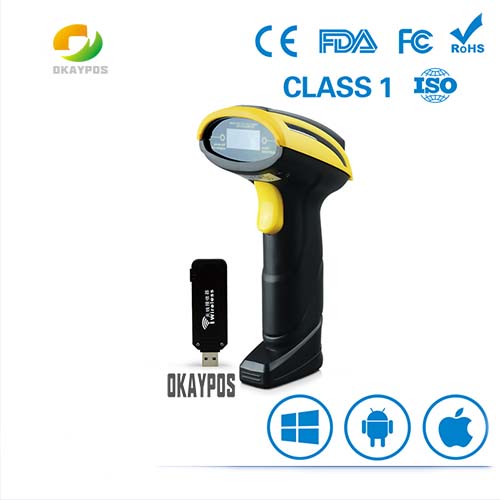

OP-988 Intelligent Voice Wireless Barcode Scanner

Product Name: Intelligent Voice Wireless Barcode Scanner
Model NO. : OP-988

Product Features:
■2.4G bidirectional wireless RF module
■Automatic frequency modulation; excellent anti-jamming capability
■250K wireless transmission rate
■300 meters effective open distance. The scanner will beep three times and has voice reminding “NO” when it exceeds the effective distance or fails to transmit data.
■Exclusive machinery ID
■User-defined ID is convenient to distinguish the data sources.
■Easy to match with
■The inventory mode is easy to be used. It can store 500-10000 bar codes. (custom made if more than 500 bar codes)
■It can turn to standby mode automatically. Standby current is less than 10UA and that makes the battery standby time much longer.
■When the battery voltage is 3.5V, the scanner will have a long beep sound every time it is power on or scanning.
■Special charging circuit makes sure the charging safety.

Main Function:
■User ID function: user-defined ID; user-defined showing or not showing the user ID.
■Instant upload data
■Inventory mode function: instruction of uploading, displaying the number of bar codes and clearing bar codes. (data can be uploaded repeatedly)
■User-defined time of standby
■USB interface

Voice Guidance:
■Scan the setup instructions: voice setup prompt
■Matching failure: beep five times
■Data upload successfully: voice reminding “finish upload”
■Fail to connect: voice reminding “connection failure”
■Low voltage warning: voice reminding “please charge”

Technical Parameters
Light source Visible laser diode, wavelength 650nm
Error rate 1/50,000,000
Safety EN60825-1, national laser safety standard Class1
Decoding Capability 1D barcode like UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, MSI, Code11, Codabar, Code93, Discrete 2 of 5, IATA, RSSvariants, Chinese 2 of 5, Inteleaved 2 of 5, China Post Code, etc.
Charging Interface RJ-45 crystal plug, 2 meters long (5V charger, LED light is red when it’s charging and green when it gets full charged.)
Trigger mode Manual(Long press the button, the scanner will be turned off)
Resolution ≥3mil
Depth of scanning field 5mm-630mm
Scanning speed 150 times/sec
Scanning mode Single line
Scanning resolution Minimum 30% reflective difference
Transmission Frequency 2.4G
Transmission Distance 300 meters linear distance
Charging Time 4 hours
Charging Voltage DC 5V±5%
Setting Mode Manual(scan the setting barcodes)
Operating current 20MA(operating mode); 100MA(maximum peak)
Power ¬100MW(operating mode); 500MW(maximum peak)
Standby Current ＜20uA
Photic Intensity 3000-12000Lux
Scanning Angle ±60°±65°±42°(left&right, front&back, turn)
Prompting Mode Intelligent voice guidance and LED light
Temperature 0℃-50℃(operating mode); -40℃-60℃(storage)
Shock resistance 2 meters drop on concrete surface
Size L*W*H:168mm*73mm*93mm
Weight 300g
Housing material ABS+PC+TPU
EMC EN55022, EN55024
Electrical Safety EN60950-1
Packaging Level IP65
Test Standard EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003
EN61000-3-2:2006+A2:2009
EN6100-3-3:2008
