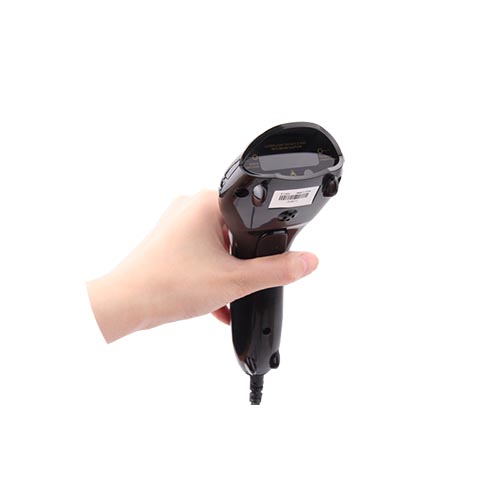

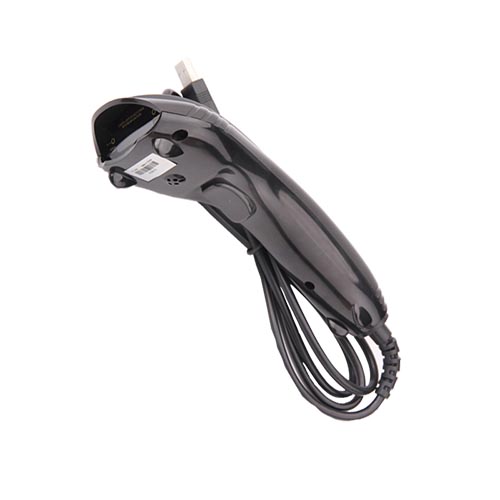

OP-1200 Automatic Barcode Scanner with Stand

PHYSICAL CHARACTERISTICS

Material

ABS+PC

Size

L*W*H: 185mm*67mm*54mm

Power Supply

DC 5V±5%

Operating Current

50mA(operating mode);30mA(standby);100mA(maximum peak)

Quiescent Current

20mA

Weight

150±5g (with cable)

PERFORMANCE CHARACTIESTICS

Interface

USB,RS232,PS/2

CPU

32bit ARM processor

Baud rate

RS232 baudrate: 1200-115200

Light source

Visible laser 650nm (Accord with China National Laser Safety Level Class 1)

Decoding Capability

Codabar, Code 93, Code128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Standard 25, 2/5 Matrix etc.

Trigger mode

Manual, Automatic induction, Continuous scanning

Detection distance

15cm(100cm²)

Resolution

Minimum 0.1mm(4mils)

Depth of field

2~9cm(0.1mm bar width);3~50cm(0.3mm bar width)

Decoding speed

300 scans/sec

Scanning Width

5cm~30cm

Prompting mode

Buzzer, Indicator light(LED)

Print Contrast

30%

Scan Angles

Roll30°,Pitch75°,Yaw65°

Cylinder horizontal scanning

Diameter 35mm

USER ENVIRONMENT

IP Grade

IP 54

Operating Temp.

0 to 50°C / 32 to 122°F

Storage Temp. Storage Temp.

0 to 50°C / 32 to 122°F

Operating Humidity

20~85% ( non-condensing )

Storage Humidity

20~85% ( non-condensing )

ESD protection

15KV Air discharge

Shock Resistance

1.5m free fall on concrete surface
