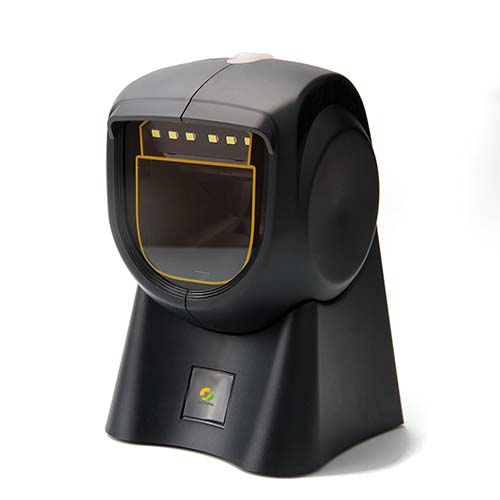

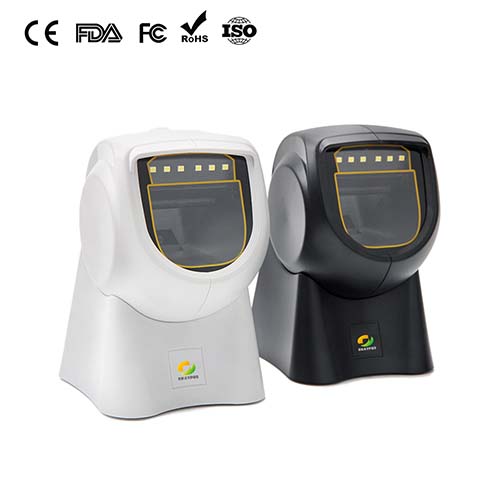

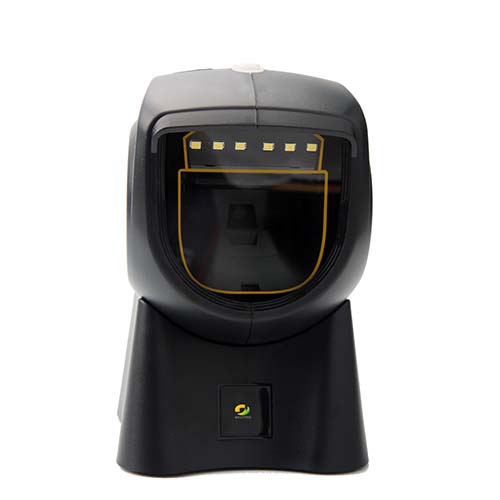

OPT-7120 Desktop 1D Image Barcode Scanner

Physical Parameters

Material

ABS+PC

Size

L*W*H: 153mm*109mm*97mm

Power Supply

DC 5V/420mA

Weight

310±5g (without cable)

Performance Parameters

Support Interface

USB

Sensor

Planar CMOS sensor

Light Source

white LED (lighting)

Processor

32-bit ARM MCU

Decoding Capability

1D version: Codabar,Code39,Code32,InterLeaved 2 of 5(24bit),Industrial 2 of 5( Industrial25),Matrix 2 of 5,Code93,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,GS1 DATABAR(RSS14),GS1 DATABAR Limited, Gs1databar Expanded

2D version: QR, MicroQR, PDF417, Data Matrix, AZTEC.

Resolution

 1D 4MIL, 2D QR8 3MIL, PCS45%

Depth of Field

4MIL  CODE39:       0--4   CM

13MIL  UPC-A :       0--16  CM

15MIL  QR    :       0--14  CM

1D code from Alipay 0--24 CM

2D code from Alipay 0--47 CM

Available for Stationery small barcode & wide barcode

Scanning Speed

300scans/sec

Scanning Method

Auto-sensing

Scanning Area

5 * 5 cm² -- 20 * 20 cm²

Prompting Mode

Buzzer, indicator light (LED)

Printing Contrast

No lower than 35%

Scanning Angle

Roll 0-360°, pitch ±65°, yaw ±60°

Environment Parameters

IP Grade

 IP 54

Operating Temperature

0 to 50 ºC / 32 to 122 ºF

Storage Temperature

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

5 - 95% (non-condensing )

ESD Protection

15kv air discharge

Shock Resistance

1m free fall on concrete surface
